Jira自动化实践：基于Jenkins实现需求与代码基线关联

一. Jira简介

中文官网：https://www.atlassian.com/zh/software/jira

1.1 Jira可以做什么?

规划

创建项目，用户需求和事务、规划 Sprint 并跨团队分配开发任务。

跟踪

全面了解项目进度情况，安排整个团队工作的优先级排序并进行讨论。

二. 安装部署

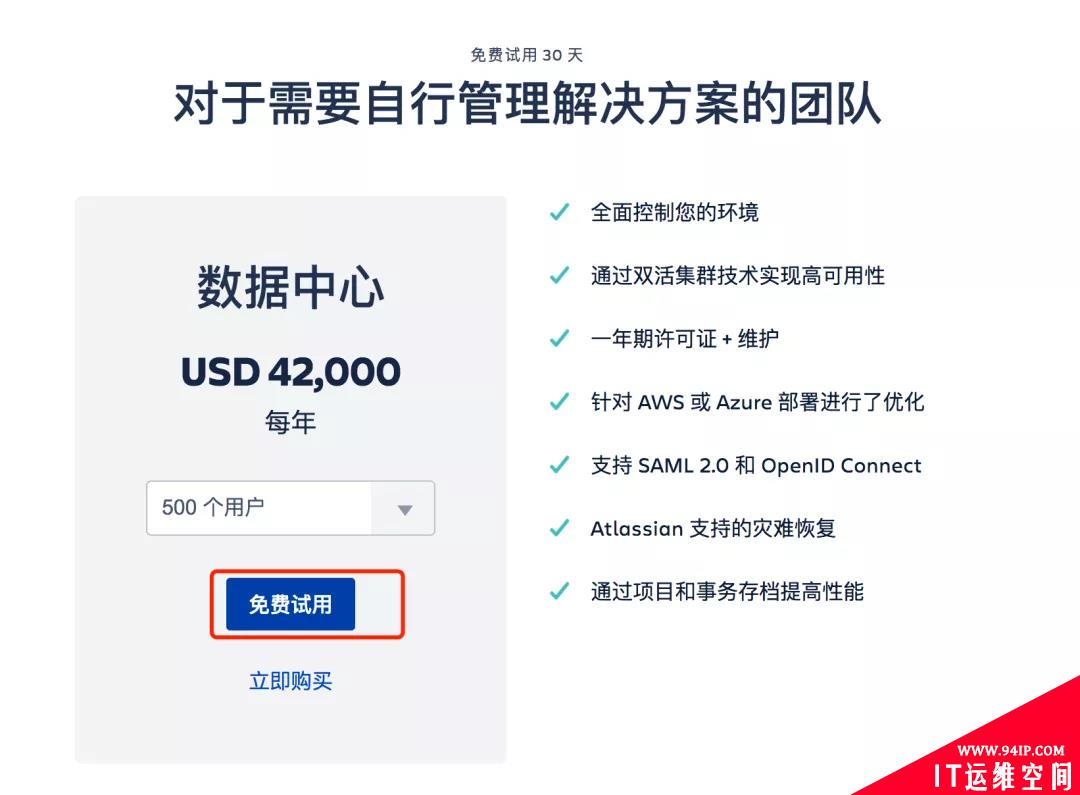

2.1 数据中心版本

https://www.atlassian.com/zh/software/jira/pricing?tab=data-center 试用

选择历史版本下载：

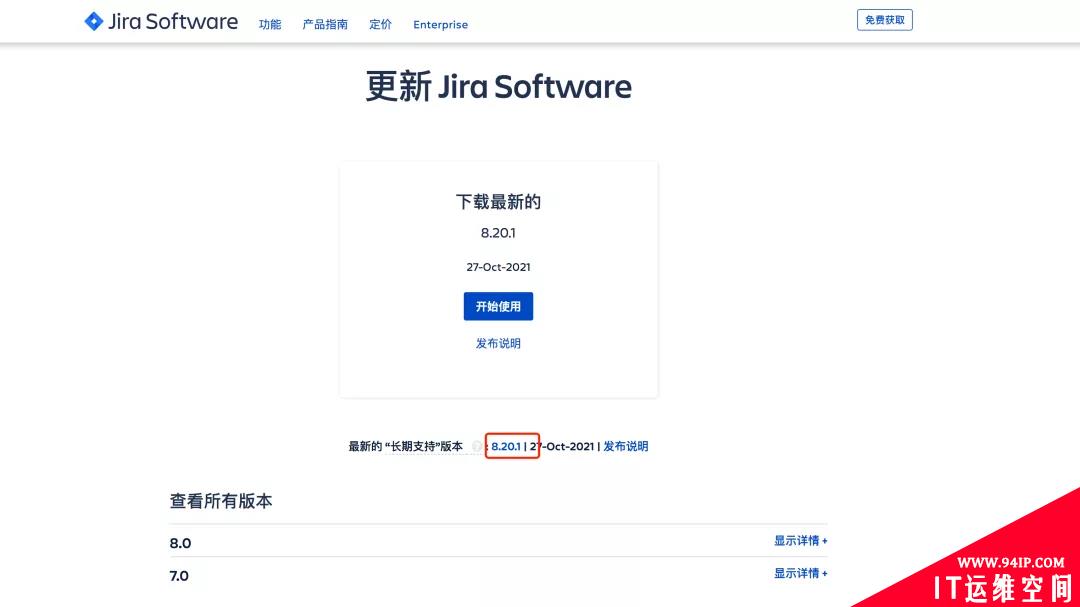

下载最新的LTS 长期支持版本：

选择部署的环境：

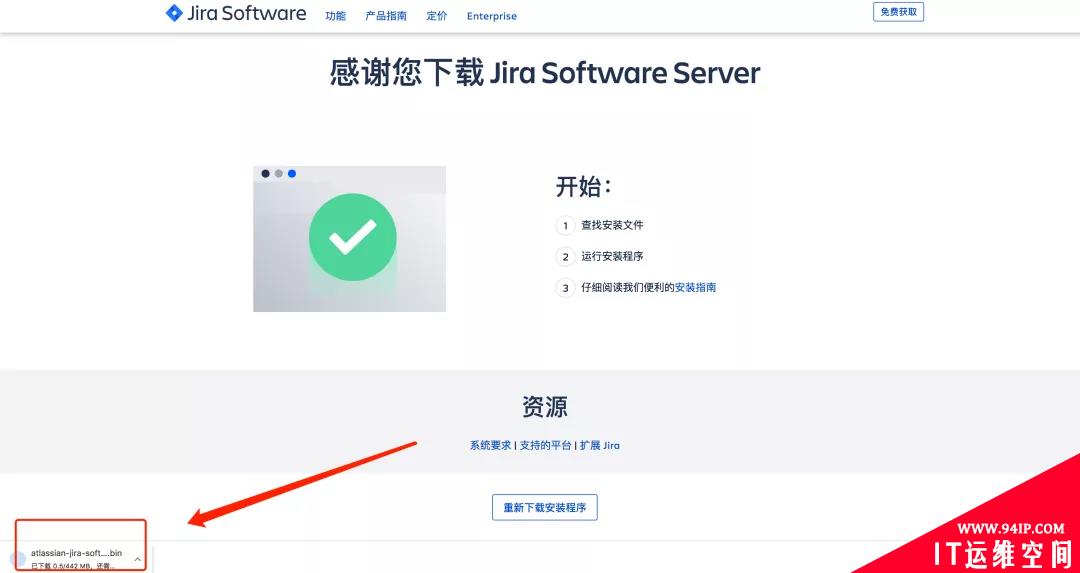

开始下载Jira Software Server安装程序：

2.2 安装部署

scpatlassian-jira-software-8.20.1-x64.binroot@192.168.1.200:/opt/

##添加权限
[root@zeyang-nuc-serviceopt]#chmod+xatlassian-jira-software-8.20.1-x64.bin


##运行安装程序
[root@zeyang-nuc-serviceopt]#./atlassian-jira-software-8.20.1-x64.bin
UnpackingJRE...
StartingInstaller...

ThiswillinstallJiraSoftware8.20.1onyourcomputer.
OK[o,Enter],Cancel[c]##回车

ClickNexttocontinue,orCanceltoexitSetup.

Choosetheappropriateinstallationorupgradeoption.
Pleasechooseoneofthefollowing:
ExpressInstall(usedefaultsettings)[1],CustomInstall(recommendedforadvancedusers)[2,Enter],UpgradeanexistingJirainstallation[3]

##此处选择自定义安装，输入回车

SelectthefolderwhereyouwouldlikeJiraSoftwaretobeinstalled.
WhereshouldJiraSoftwarebeinstalled?
[/opt/atlassian/jira]

##选择安装目录


DefaultlocationforJiraSoftwaredata
[/var/atlassian/application-data/jira]

##选择数据目录

ConfigurewhichportsJiraSoftwarewilluse.
JirarequirestwoTCPportsthatarenotbeingusedbyanyother
applicationsonthismachine.TheHTTPportiswhereyouwillaccessJira
throughyourbrowser.TheControlportisusedtostartupandshutdownJira.
Usedefaultports(HTTP:8080,Control:8005)-Recommended[1,Enter],SetcustomvalueforHTTPandControlports[2]
2##输入2自定义服务端口
HTTPPortNumber
[8071]
8801
ControlPortNumber
[8077]
8802

##安装服务
Jiracanberuninthebackground.
YoumaychoosetorunJiraasaservice,whichmeansitwillstart
automaticallywheneverthecomputerrestarts.
InstallJiraasService?
Yes[y,Enter],No[n]
y


DetailsonwhereJiraSoftwarewillbeinstalledandthesettingsthatwillbeused.
InstallationDirectory:/opt/atlassian/jira
HomeDirectory:/var/atlassian/application-data/jira
HTTPPort:8801
RMIPort:8802
Installasservice:Yes
Install[i,Enter],Exit[e]


Extractingfiles...


##启动服务
PleasewaitafewmomentswhileJiraSoftwareisconfigured.

InstallationofJiraSoftware8.20.1iscomplete
StartJiraSoftware8.20.1now?
Yes[y,Enter],No[n]
y

PleasewaitafewmomentswhileJiraSoftwarestartsup.
LaunchingJiraSoftware...



InstallationofJiraSoftware8.20.1iscomplete
YourinstallationofJiraSoftware8.20.1isnowreadyandcanbeaccessed
viayourbrowser.
JiraSoftware8.20.1canbeaccessedathttp://localhost:8801
Finishinginstallation...

访问：http://serverip:8801

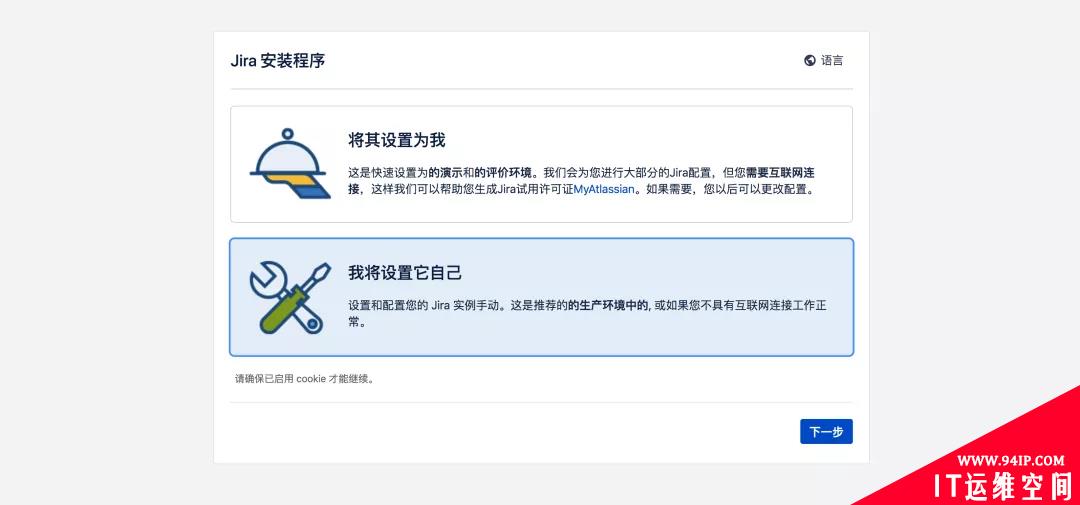

2.3 初始化配置

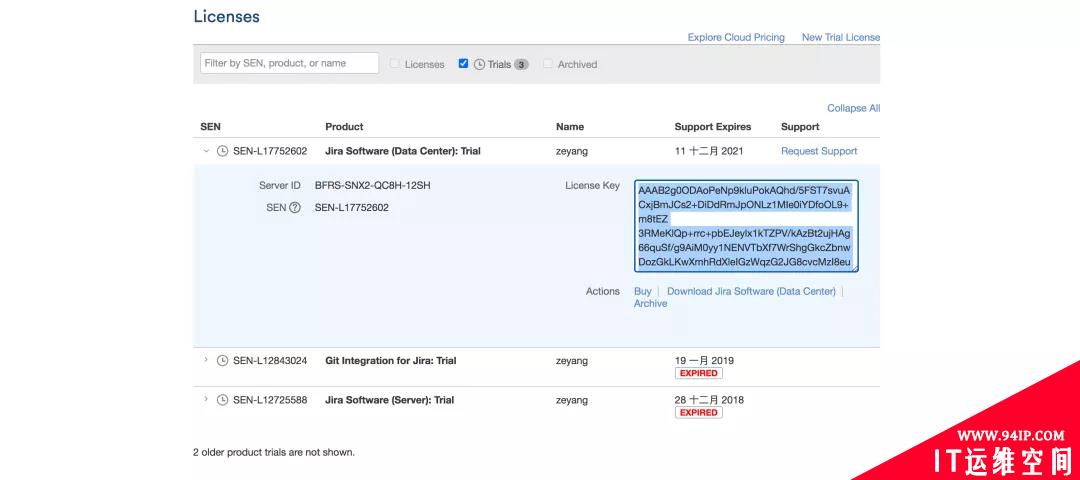

获取授权码：

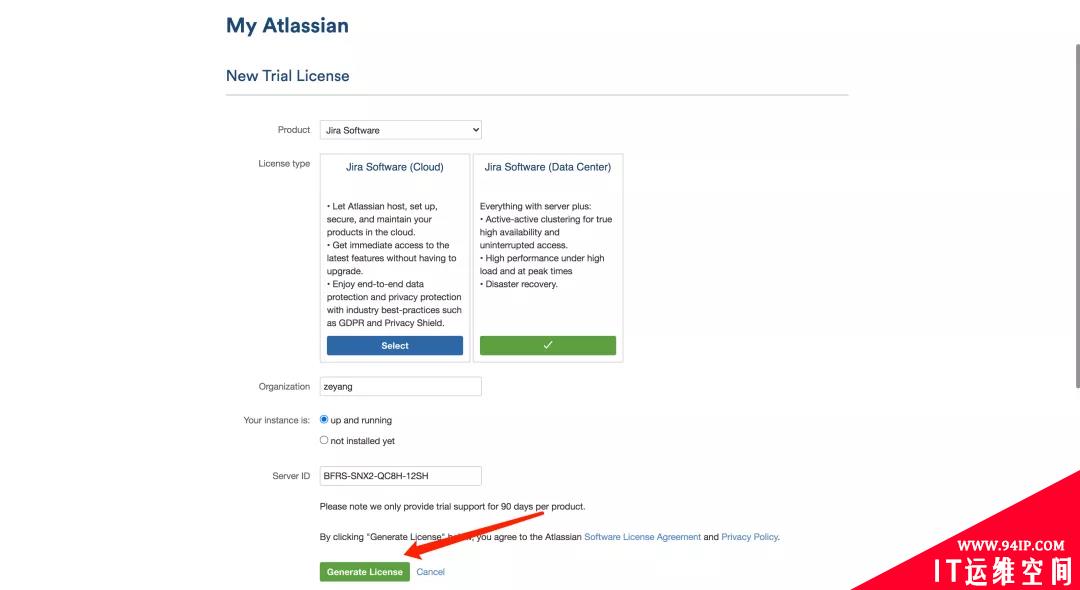

注册账号登录：生成授权码，激活实例;

三. Jira使用实践

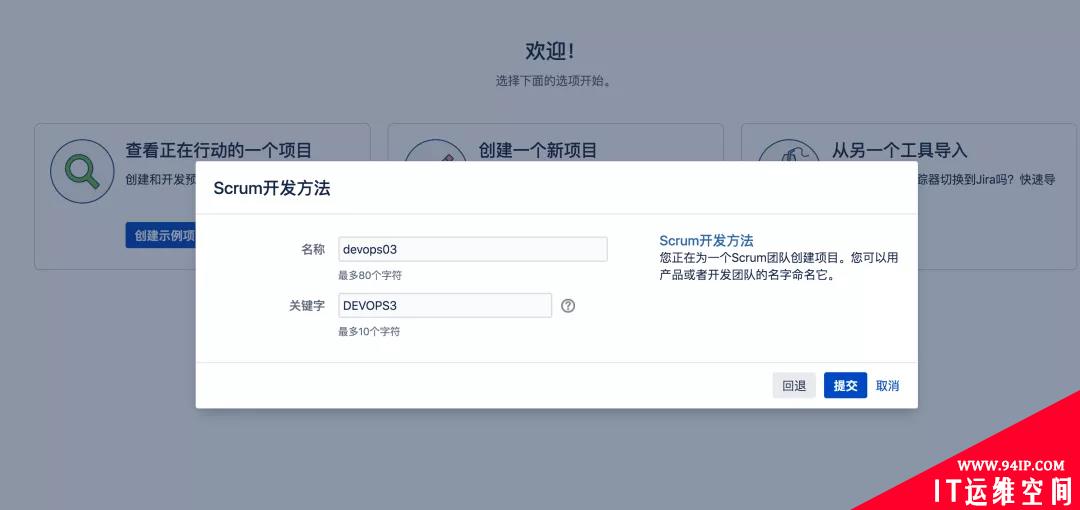

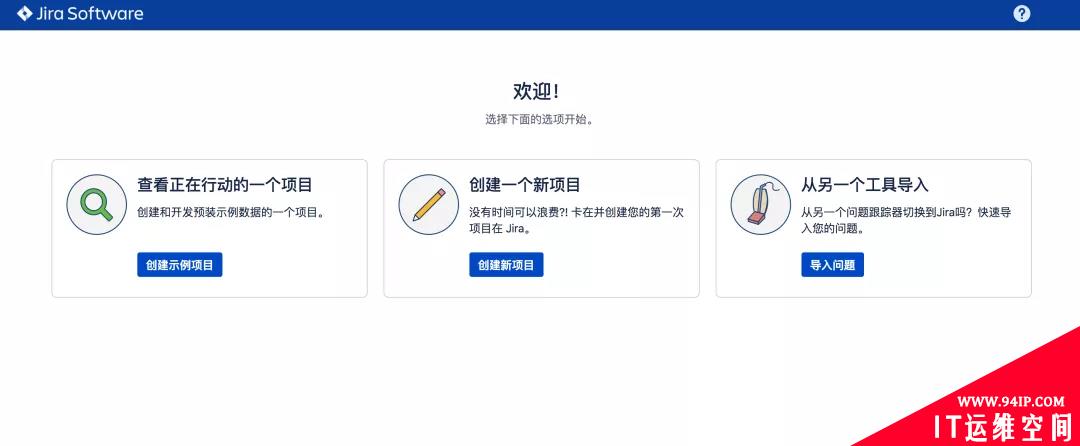

3.1 创建一个项目

注意：一个Jira 项目对应一个GitLab项目组;

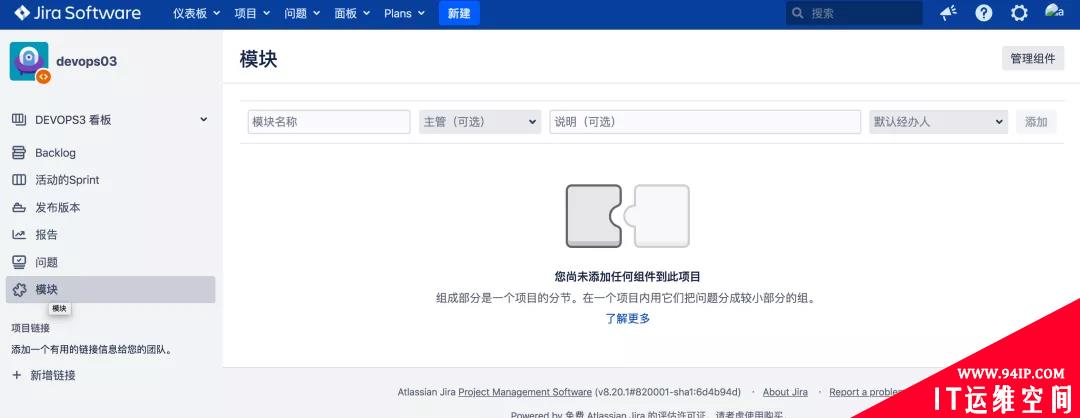

3.2 为项目添加模块

注意：一个Jira模块对应一个GitLab项目;

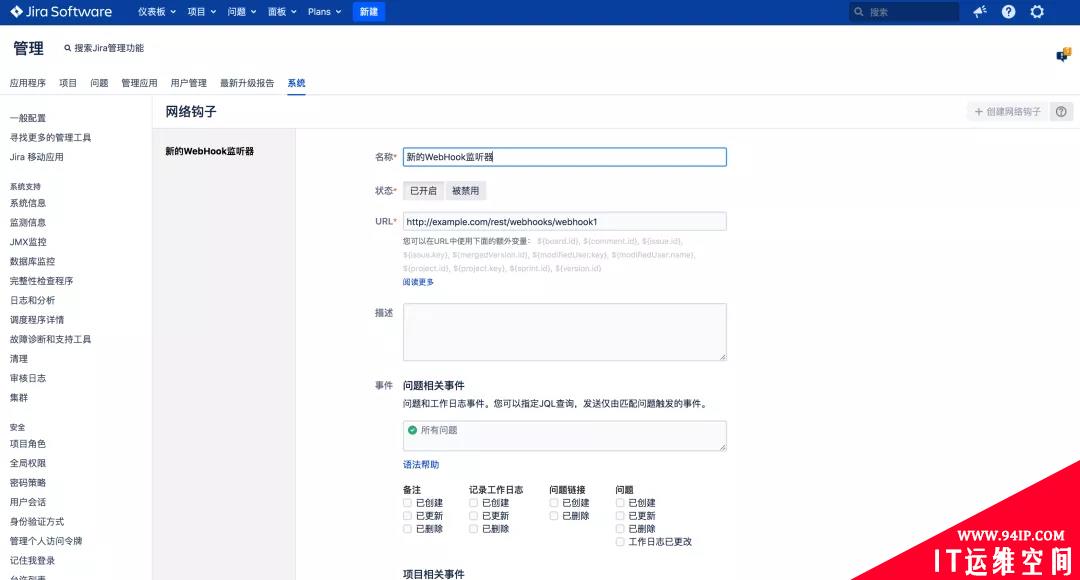

3.3 配置WebHook系统， 网络钩子(webhook)

3.4 需求/任务管理

创建需求

这里在Jira上面把这个需求logging-error， 类型为故事 关联到devops03-devops-service模块;

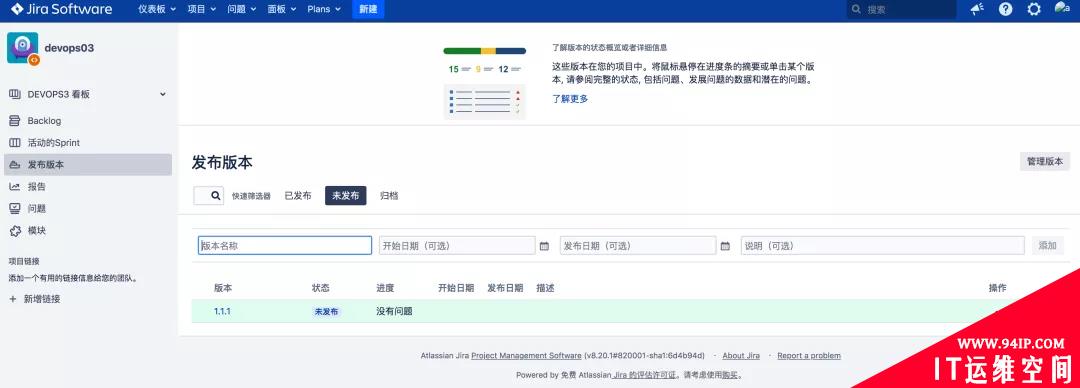

3.5 发布Release

课程中把 发布对应为GitLab项目代码库中的版本分支;

issue关联发布：可以想象成GitLab特性分支合并到版本分支;

四. Jira自动化实践

工作流

工具链集成

4.1 需求与代码关联

1. 创建Jenkins作业并配置webhook

webhookData：这个变量存放的是Jira 传递的数据。

2. 为Jira配置一个系统级别的webhook

选项解释：

• 指定Jenkins的webhook触发器地址;
• 通过JQL指定，允许devops03这个项目进行触发;
• 勾选动作，触发事件;(我在jira做了什么操作之后能够触发)

3. Jenkins流水线配置

解析Jira传递过来的数据;

webhookData=readJSONtext:"${webhookData}"


//Jira事件
jiraEvent=webhookData.webhookEvent
jiraProjectName=webhookData.issue.fields.project.name

//获取gitlab参数
gitlabProjects=[]
gitlabBranchName=webhookData.issue.key
gitlabGroupName=jiraProjectName

for(iinwebhookData.issue.fields.components){
gitlabProjects.add(i["name"])
}

currentBuild.description="Triggerby${jiraEvent}\nproject:${gitlabProjects}\nbranch:${gitlabBranchName}"

封装GitLab API接口

https://docs.gitlab.com/ee/api/branches.html#create-repository-branch

//创建分支
defCreateBranch(projectId,newBranchName,sourceBranchName){
try{
apiUrl="projects/${projectId}/repository/branches?branch=${newBranchName}&ref=${sourceBranchName}"
response=HttpReq('POST',apiUrl,"")
}
catch(Exceptione){
println(e)

}
}

//获取所有项目的id
defGetProjectsId(gitlabGroupName,gitlabProjects){
gitlabProjectIds=[]
for(projectingitlabProjects){
id=GetProjectId(gitlabGroupName,project)
println(id)
if(id!=0){
gitlabProjectIds.add(id)
}
}
returngitlabProjectIds
}

//根据项目名称获取项目id
defGetProjectId(groupName,projectName){
apiUrl="projects?search=${projectName}"
response=HttpReq('GET',apiUrl,"")
response=readJSONtext:response.content-"\n"

if(response.size()>1){
for(iinresponse){
println(i["path_with_namespace"])
println(groupName+projectName)
if(i["path_with_namespace"]=="${groupName}/${projectName}"){
println(i["id"])
returni["id"]
}
}
}else{
returnresponse[0]["id"]
}
}


//封装HTTP
defHttpReq(reqType,reqUrl,reqBody){
defgitServer="http://192.168.1.200/api/v4"
withCredentials([string(credentialsId:'058b7907-ebe2-4d14-9b91-1ac72e071c59',variable:'GITLABTOKEN')]){
response=httpRequestacceptType:'APPLICATION_JSON_UTF8',
consoleLogResponseBody:true,
contentType:'APPLICATION_JSON_UTF8',
customHeaders:[[maskValue:false,name:'PRIVATE-TOKEN',value:"${GITLABTOKEN}"]],
httpMode:"${reqType}",
url:"${gitServer}/${reqUrl}",
wrapAsMultipart:false,
requestBody:"${reqBody}"

}
returnresponse
}

Pipeline主程序

pipeline{
agent{label"build"}

stages{
stage("Process"){
steps{
script{
println(gitlabProjects)
println(gitlabBranchName)
projectIds=GetProjectsId(gitlabGroupName,gitlabProjects)
switch(jiraEvent){
case"jira:issue_created":
println(projectIds)
for(idinprojectIds){
CreateBranch(id,gitlabBranchName,"master")
}
break
default:
println("error...")
break
}
}
}
}
}
}

4. 效果验证

在Jira里面创建一个模块和issue, 关联项目;

Jenkins 流水线运行;

验证Gitlab中多了分支;
