Nginx配合keepalived实现双主负载均衡

king 运维技术 2022-11-13 466浏览 0

前言：由于之前一直使用的是主从高可用加后端负载，随着业务量的增大，前端一台服务在高峰时期有些吃力，所有对之前架构进行了一点改造，把主从升级成了双主，可以更充分的利用现有服务器资源，由于实验环境有限，后端的测试仅仅使用了一个静态页面，没有搭建动态环境，也没用使用数据库，如有需要可以参考其他文档。

一、架构规划

1、服务器IP地址规划

VIP1：192.168.1.149

VIP2：192.168.1.150

Keepalived1:192.168.1.151

Keepalived2:192.168.1.152

WebServer1:192.168.1.201

WebServer2:192.168.1.202

2、服务器操作系统

所使用的操作系统均为CentOS release 6.6 (Final) x86_64，最小化安装。

3、网络拓扑图

Nginx配合keepalived实现双主负载均衡 #p#

二、配置Nginx代理服务器

此部分Node1与Node2的配置完全相同。

1，准备编译环境

1	#yum–yinstallgccgcc-c++pcre-developensslopenssl-develwget

2，编译安装nginx

#./configure\
--prefix=/usr/local/nginx\
--sbin-path=/usr/local/nginx/sbin/nginx\
--conf-path=/etc/nginx/nginx.conf\
--error-log-path=/var/log/nginx/error.log\
--http-log-path=/var/log/nginx/access.log\
--pid-path=/var/run/nginx/nginx.pid\
--lock-path=/var/lock/nginx.lock\
--user=nginx\
--group=nginx\
--with-http_ssl_module\
--with-pcre
#make&&makeinstall

3,为nginx提供SysV init脚本:

# vi /etc/rc.d/init.d/nginx

添加如下内容

#!/bin/sh
#
#nginx-thisscriptstartsandstopsthenginxdaemon
#
#chkconfig:-8515
#description:NginxisanHTTP(S)server,HTTP(S)reverse\
#proxyandIMAP/POP3proxyserver
#processname:nginx
#config:/etc/nginx/nginx.conf
#config:/etc/sysconfig/nginx
#pidfile:/var/run/nginx.pid
#Sourcefunctionlibrary.
./etc/rc.d/init.d/functions
#Sourcenetworkingconfiguration.
./etc/sysconfig/network
#Checkthatnetworkingisup.
["$NETWORKING"="no"]&&exit0
nginx="/usr/local/nginx/sbin/nginx"
prog=$(basename$nginx)
NGINX_CONF_FILE="/etc/nginx/nginx.conf"
[-f/etc/sysconfig/nginx]&&./etc/sysconfig/nginx
lockfile=/var/lock/subsys/nginx
make_dirs(){
#makerequireddirectories
user=`nginx-V2>&1|grep"configurearguments:"|sed's/[^*]*--user=\([^]*\).*/\1/g'-`
options=`$nginx-V2>&1|grep'configurearguments:'`
foroptin$options;do
if[`echo$opt|grep'.*-temp-path'`];then
value=`echo$opt|cut-d"="-f2`
if[!-d"$value"];then
#echo"creating"$value
mkdir-p$value&&chown-R$user$value
fi
fi
done
}
start(){
[-x$nginx]||exit5
[-f$NGINX_CONF_FILE]||exit6
make_dirs
echo-n$"Starting$prog:"
daemon$nginx-c$NGINX_CONF_FILE
retval=$?
echo
[$retval-eq0]&&touch$lockfile
return$retval
}
stop(){
echo-n$"Stopping$prog:"
killproc$prog-QUIT
retval=$?
echo
[$retval-eq0]&&rm-f$lockfile
return$retval
}
restart(){
configtest||return$?
stop
sleep1
start
}
reload(){
configtest||return$?
echo-n$"Reloading$prog:"
killproc$nginx-HUP
RETVAL=$?
echo
}
force_reload(){
restart
}
configtest(){
$nginx-t-c$NGINX_CONF_FILE
}
rh_status(){
status$prog
}
rh_status_q(){
rh_status>/dev/null2>&1
}
case"$1"in
start)
rh_status_q&&exit0
$1
;;
stop)
rh_status_q||exit0
$1
;;
restart|configtest)
$1
;;
reload)
rh_status_q||exit7
$1
;;
force-reload)
force_reload
;;
status)
rh_status
;;
condrestart|try-restart)
rh_status_q||exit0
;;
*)
echo$"Usage:$0{start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
exit2
esac

而后为此脚本赋予执行权限：

# chmod +x /etc/rc.d/init.d/nginx

添加至服务管理列表，并让其开机自动启动：

# chkconfig –add nginx

# chkconfig nginx on

4，配置Nginx代理

# cat nginx.conf

usernginxnginx;
worker_processes1;
pid/var/run/nginx/nginx.pid;
worker_rlimit_nofile51200;
events
{
useepoll;
worker_connections51200;
}
http{
includemime.types;
default_typeapplication/octet-stream;
server_names_hash_bucket_size128;
client_header_buffer_size32k;
large_client_header_buffers432k;
client_max_body_size8m;
sendfileon;
tcp_nopushon;
keepalive_timeout60;
tcp_nodelayon;
fastcgi_connect_timeout300;
fastcgi_send_timeout300;
fastcgi_read_timeout300;
fastcgi_buffer_size64k;
fastcgi_buffers464k;
fastcgi_busy_buffers_size128k;
fastcgi_temp_file_write_size128k;
gzipon;
gzip_min_length1k;
gzip_buffers416k;
gzip_http_version1.0;
gzip_comp_level2;
gzip_typestext/plainapplication/x-javascripttext/cssapplication/xml;
gzip_varyon;
upstreambackend
{
ip_hash;
server192.168.1.201:80;
server192.168.1.202:80;
}
log_formataccess'$remote_addr-$remote_user[$time_local]"$request"'
'$status$body_bytes_sent"$http_referer"'
'"$http_user_agent"$http_x_forwarded_for';
access_log/var/log/nginx/access.logaccess;
server{
listen80;
server_namewww.test.com;
location/{
root/var/www/html;
indexindex.phpindex.htmindex.html;
proxy_redirectoff;
proxy_set_headerHost$host;
proxy_set_headerX-Real-IP$remote_addr;
proxy_set_headerX-Forwarded-For$proxy_add_x_forwarded_for;
proxy_passhttp://backend;
}
location/nginx{
access_logoff;
auth_basic"NginxStatus";
}
}
}

#p#

三、安装与配置keepalived

#wgethttp://www.keepalived.org/software/keepalived-1.2.16.tar.gz
#yum-yinstalllibnl-devel
#./configure--prefix=/usr/local/keepalived
#make&&makeinstall
#cp/usr/local/keepalived/sbin/keepalived/usr/sbin/
#cp/usr/local/keepalived/etc/sysconfig/keepalived/etc/sysconfig/
#cp/usr/local/keepalived/etc/rc.d/init.d/keepalived/etc/init.d/
#mkdir/etc/keepalived
#cd/etc/keepalived/
#vimkeepalived.conf

以上步骤在两台keepalived机器上都需要进行

下面分别是两节点的配置文件

节点一

!ConfigurationFileforkeepalived

global_defs{
notification_email{
ganen2008@126.com#接收警报的email地址,可以添加多个
}
notification_email_fromganen201405@126.com#发件人地址
smtp_connect_timeout3#超时时间
smtp_server127.0.0.1#发送邮件的服务器
router_idLVS_DEVEL#loadbalancer的标识ID,用于email警报
}
vrrp_instanceVI_1{
stateMASTER
interfaceeth0
virtual_router_id51
priority100#权值要比back高
advert_int1
authentication{
auth_typePASS
auth_pass123456
}
virtual_ipaddress{
192.168.1.149#vip的地址
}
}
vrrp_instanceVI_2{
stateBACKUP
interfaceeth0
virtual_router_id52
priority90
advert_int1
authentication{
auth_typePASS
auth_pass123456
}
virtual_ipaddress{
192.168.1.150
}
}

节点二

!ConfigurationFileforkeepalived
global_defs{
notification_email{
ganen2008@126.com
}
notification_email_fromganen201405@126.com
smtp_connect_timeout3
smtp_server127.0.0.1
router_idLVS_DEVEL
}
vrrp_instanceVI_1{
stateBACKUP
interfaceeth1
virtual_router_id51
priority90
advert_int1
authentication{
auth_typePASS
auth_pass123456
}
virtual_ipaddress{
192.168.1.149
}
}
vrrp_instanceVI_2{
stateMASTER
interfaceeth1
virtual_router_id52
priority100
advert_int1
authentication{
auth_typePASS
auth_pass123456
}
virtual_ipaddress{
192.168.1.150
}
}

为两节点添加nginx状态监控脚本，由于keepalived本身不能检测到nginx的存活状态，需要借助于第三方脚本来实现，下面是出自余洪春前辈的一个检测脚本，在这里借用一下。

# vim /home/nginx_chk.sh

# chmod +x /home/nginx_chk.sh

#!/bin/bash
while:
do
nginxpid=`ps-Cnginx--no-header|wc-l`
if[$nginxpid-eq0];then
/usr/local/nginx/sbin/nginx
sleep5
nginxpid=`ps-Cnginx--no-header|wc-l`
echo$nginxpid
if[$nginxpid-eq0];then
/etc/init.d/keepalivedstop
fi
fi
sleep5
done

# chmod +x /home/nginx_chk.sh
后台执行该脚本
# nohup sh /home/nginx_chk.sh &

#p#

四、安装web server

这里为了测试我直接使用yum安装两台服务器上的nginx服务。

增加额外资源库

#yum-yinstallyum-priorities
#rpm-Uvhhttp://mirrors.yun-idc.com/epel/6/x86_64/epel-release-6-8.noarch.rpm
#rpm-Uvhhttp://rpms.famillecollet.com/enterprise/remi-release-6.rpm
#yum-yinstallnginx
#/etc/init.d/nginxstart

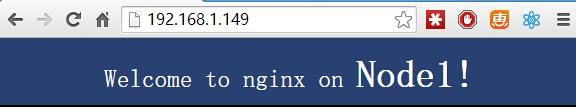

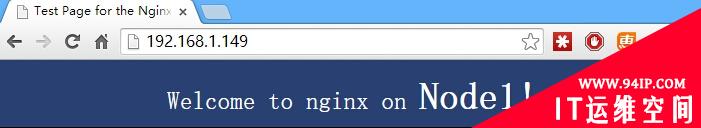

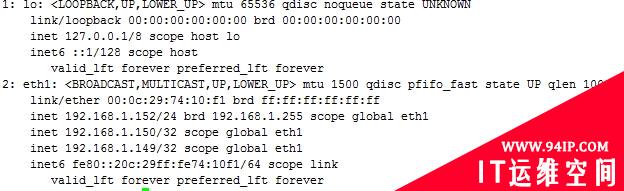

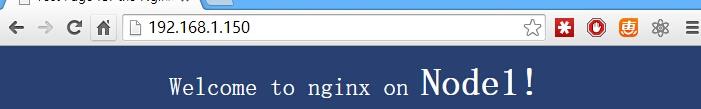

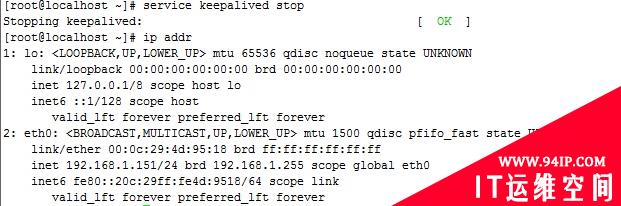

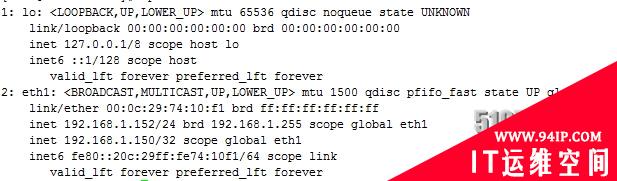

五、启动测试

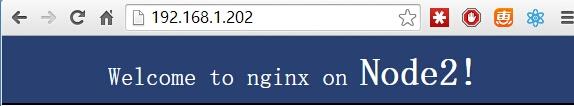

首先测试两台WebServer的可用性

Nginx配合keepalived实现双主负载均衡
